RIPのトラブル その3 【CCNAレベル】

(所属カテゴリー:IPルーティング | シスコ---投稿日時:2010年10月28日)

ネットワーク構成

下記のネットワーク構成でRIPv2を利用したダイナミックルーティングを行います。

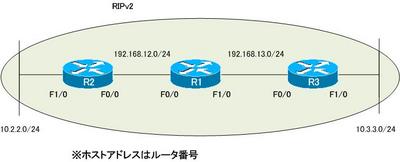

図 RIPのトラブル その3 ネットワーク構成

設定概要

各ルータのRIPに関連する設定概要は次の通りです。

R1

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
interface FastEthernet0/0
 ip address 192.168.12.1 255.255.255.0
!
interface FastEthernet1/0
 ip address 192.168.13.1 255.255.255.0
!
router rip
 version 2
 timers basic 2 10 10 20
 network 192.168.12.0
 network 192.168.13.0
 no auto-summary
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

R2

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
interface FastEthernet0/0
 ip address 192.168.12.2 255.255.255.0
!
interface FastEthernet1/0
 ip address 10.2.2.2 255.255.255.0
!
router rip
 version 2
 network 10.0.0.0
 network 192.168.12.0
 no auto-summary
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

R3

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
interface FastEthernet0/0
 ip address 192.168.13.3 255.255.255.0
!
interface FastEthernet1/0
 ip address 10.3.3.3 255.255.255.0
!
router rip
 version 2
 network 10.0.0.0
 network 192.168.13.0
 no auto-summary
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

RIPのトラブル その3 【CCNAレベル】の続きを読む
