バックア��インタフェースとはバックア��インタフェースは特定�インタフェースを監視して、そのインタフェースが物�にダウンしたことをトリガーとしてバックア��回�(ISDN)を有効にするバックア��手法です� また、監視して�インタフェースがダウンしたときだけでなく、一定��荷を�た�合にもバ�ア��回線を有効にして�荷�することも可能です� |

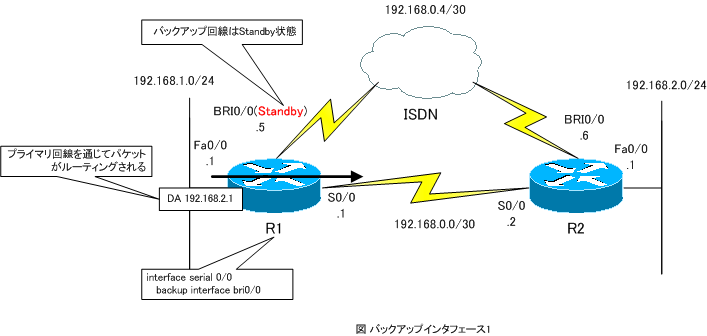

正常時�ルー�ングバックア��インタフェースを設定すると、�ライマリ回線がア��のとき、バ�ア��回線�Standby状態となり利用することができません�(図 バックア��インタフェース1) プライマリ回線を通じて、パケ�をルー�ングします� |

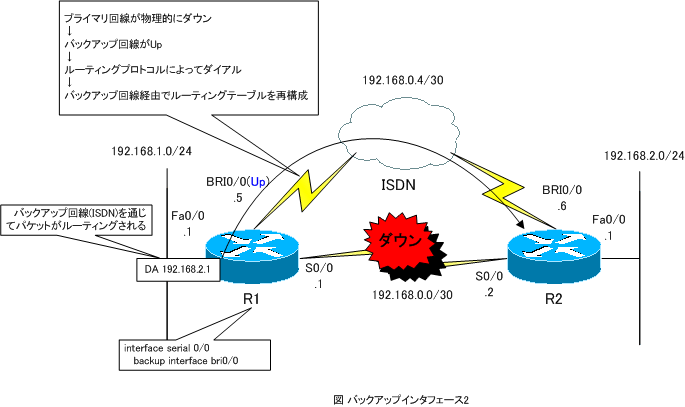

障害発生時のルー�ングプライマリ回線がダウンしてはじめてバックア��回線がア��になります。パケ�をルー�ングするには、ルー�ング��ブルを構�しなければ�ません。そのためには、フロー�ングスタ��と�合わせるか、ルー�ングプロトコルを利用します。フロー�ングスタ��を利用するよりも、ルー�ングプロトコルを利用してルー�ング��ブルを�構�することの方が多いです�ルー�ングプロトコルを利用する場合には、ISDN回線上でルー�ングプロトコルを動作させ、なおかつルー�ングプロトコルをインタレス�ングパケ�として設�しておく�があります� バックア��回線がア��になり、ルー�ングプロトコルのパケ�によってダイアルし、ISDN回線経由でルー�ング��ブルを�構�することによって�常の��タパケ�をルー�ングできるようになります� (図 バックア��インタフェース2) 注意すべき点は、�ライマリ回線をshutdownしてもバ�ア��インタフェースは動作しません� |
バックア��インタフェースの設�バックア��インタフェースの設定��バックア��の対象となる�ライマリ回線�インタフェースで次のコマンドを入力します�(config-if)#backup interface [interface] 以下、設定�サンプルです� Router#show run interface serial 1/0 Building configuration... Current configuration : 282 bytes ! interface Serial1/0 backup interface BRI0/0 ip address 161.7.55.6 255.255.255.240 encapsulation frame-relay ip ospf hello-interval 3 ip ospf priority 0 frame-relay map ip 161.7.55.2 165 broadcast frame-relay map ip 161.7.55.5 165 broadcast no frame-relay inverse-arp end Router#show interface serial 1/0 Serial1/0 is up, line protocol is up Hardware is CD2430 in sync mode Internet address is 161.7.55.6/28 Backup interface BRI0/0, failure delay 0 sec, secondary disable delay 0 sec, kickin load not set, kickout load not set MTU 1500 bytes, BW 128 Kbit, DLY 20000 usec, reliability 255/255, txload 1/255, rxload 1/255 Encapsulation FRAME-RELAY, loopback not set Keepalive set (10 sec) LMI enq sent 1929, LMI stat recvd 1931, LMI upd recvd 0, DTE LMI up LMI enq recvd 0, LMI stat sent 0, LMI upd sent 0 LMI DLCI 1023 LMI type is CISCO frame relay DTE FR SVC disabled, LAPF state down Broadcast queue 0/64, broadcasts sent/dropped 0/0, interface broadcasts 0 Last input 00:00:00, output 00:00:00, output hang never Last clearing of "show interface" counters 05:30:04 Input queue: 0/75/0/0 (size/max/drops/flushes); Total output drops: 0 Queueing strategy: weighted fair Output queue: 0/1000/64/0 (size/max total/threshold/drops) Conversations 0/1/32 (active/max active/max total) Reserved Conversations 0/0 (allocated/max allocated) Available Bandwidth 96 kilobits/sec 5 minute input rate 0 bits/sec, 0 packets/sec 5 minute output rate 0 bits/sec, 0 packets/sec 3362 packets input, 132602 bytes, 0 no buffer Received 0 broadcasts, 0 runts, 0 giants, 0 throttles 0 input errors, 0 CRC, 0 frame, 0 overrun, 0 ignored, 0 abort 3132 packets output, 114041 bytes, 0 underruns 0 output errors, 0 collisions, 9 interface resets 0 output buffer failures, 0 output buffers swapped out 5 carrier transitions DCD=up DSR=up DTR=up RTS=up CTS=up |
